NT4-K6

Der NT4-K6 Systemverstärker mit DSP und Dante Audio on Board, leistet 4 x 1500W an 4 Ohm sowie 4 x 1000W an 8 Ohm.

Application

  • • 4 in 4out Powered Loudspeaker Controller
  • • 4 x 1.600W @ 4 Ohms
  • • Active PFC for worldwide Operation
  • • Presets for all AD-Systems products on board
  • • Open Edit Architecture for Custom Setups
  • • Future-upgradeable
  • • Dante™ Audio

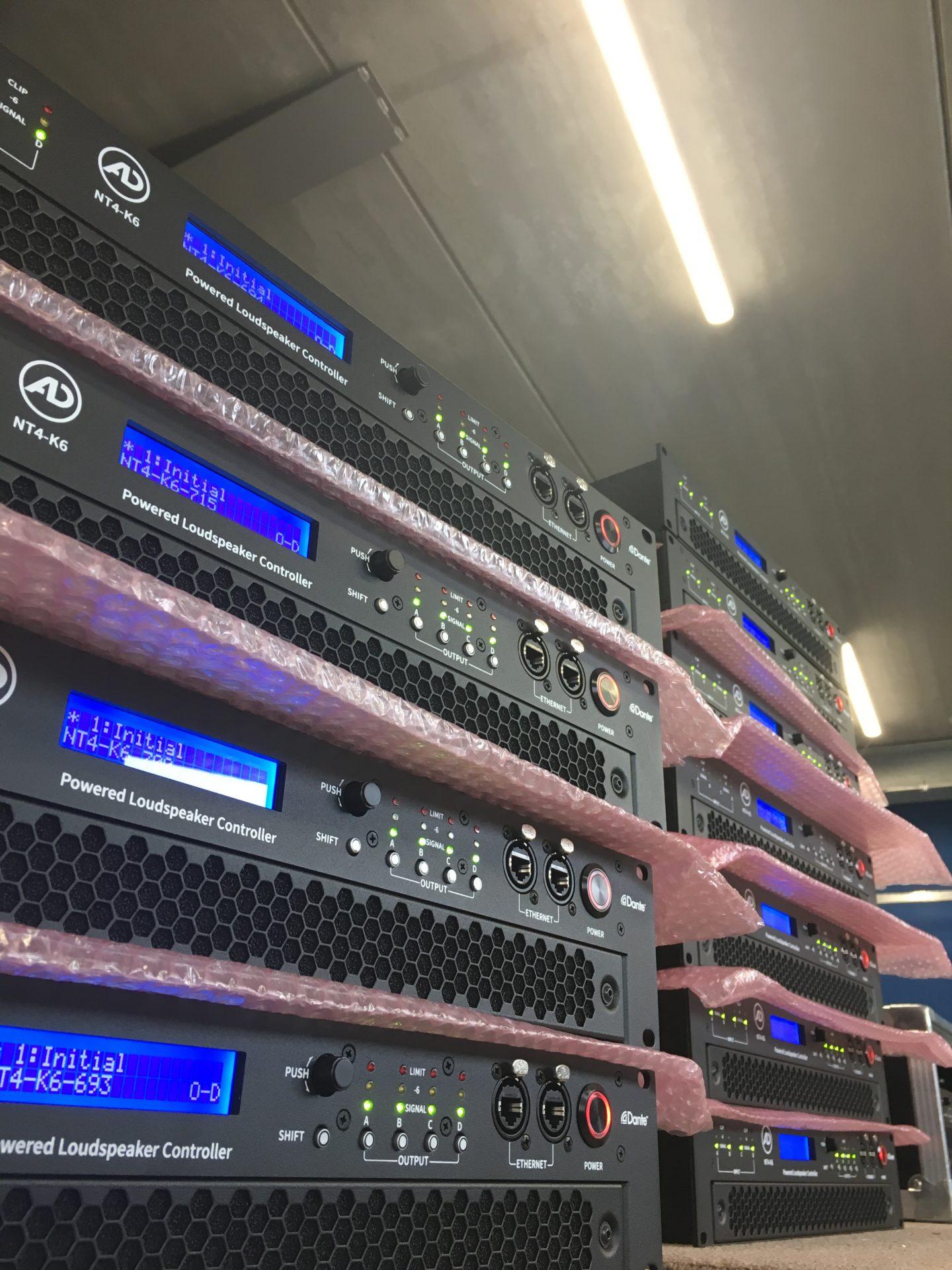

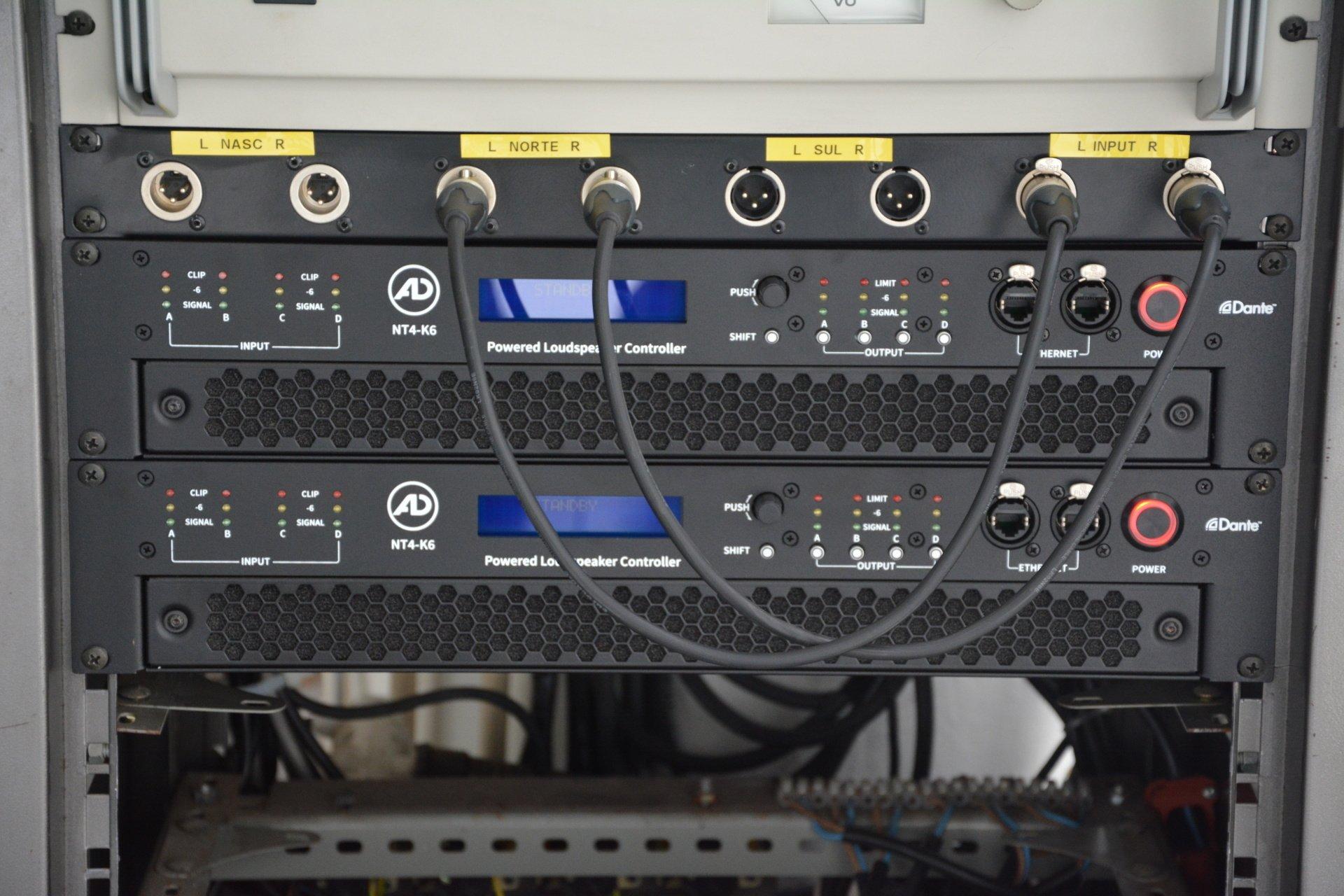

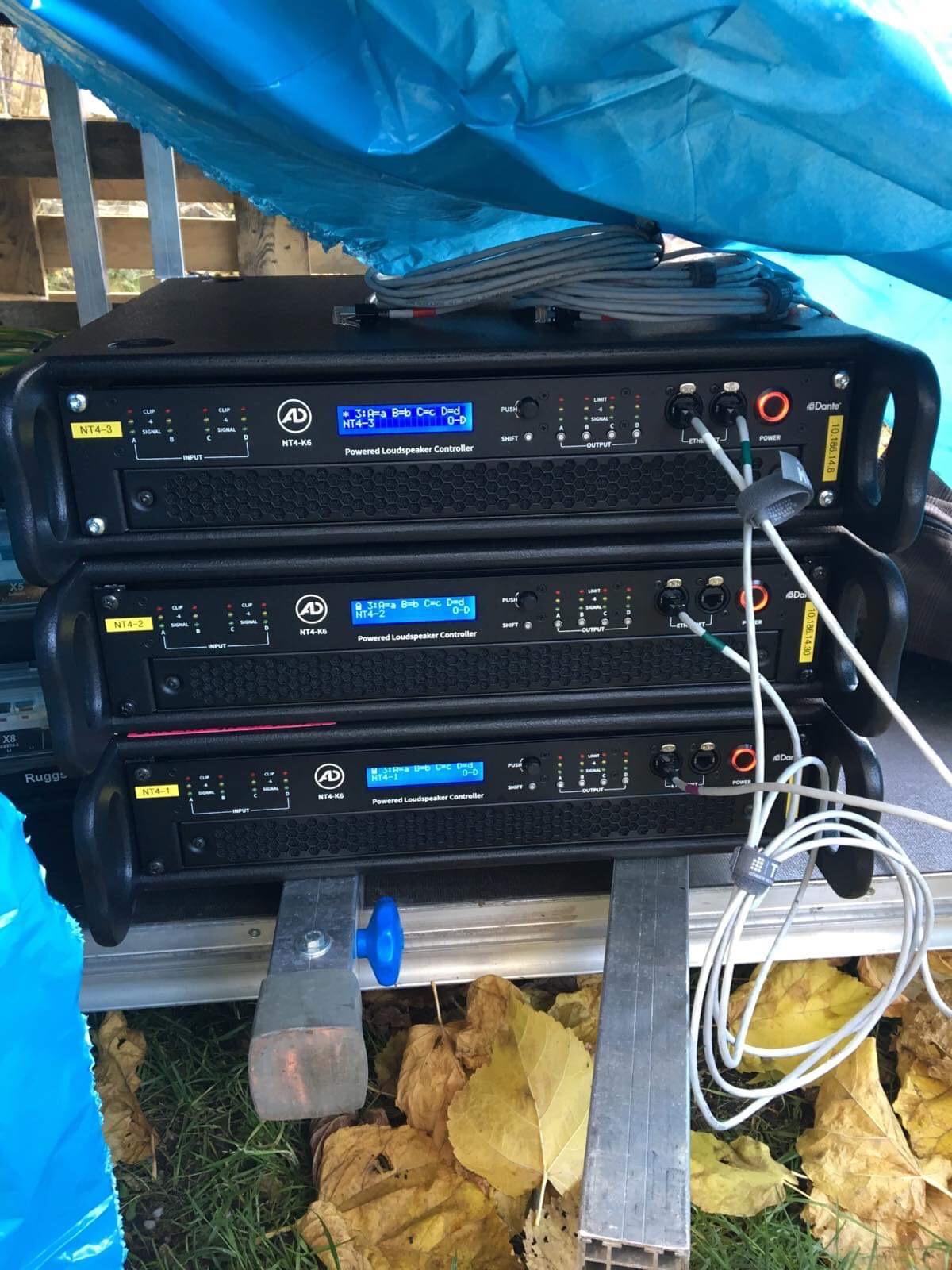

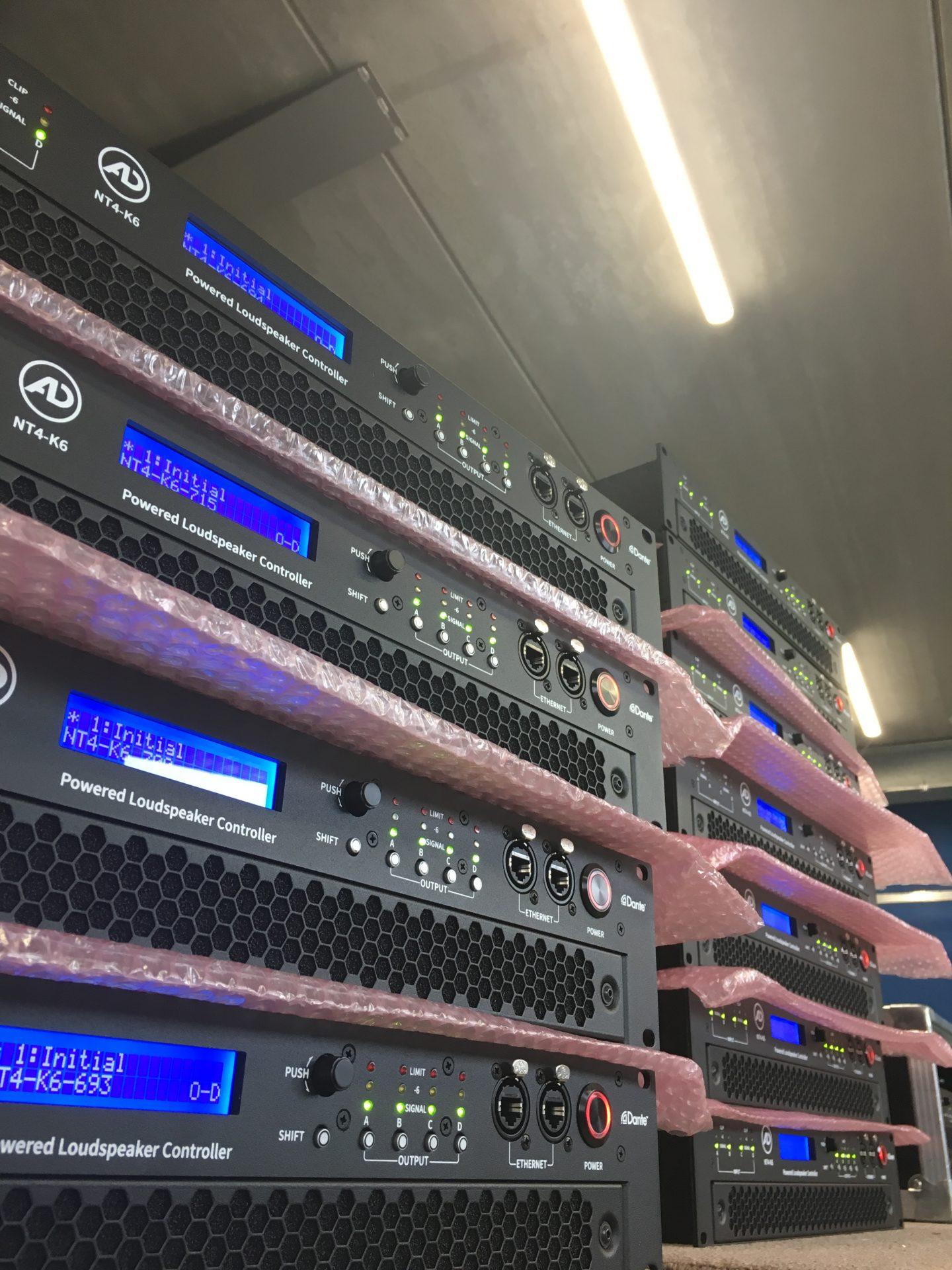

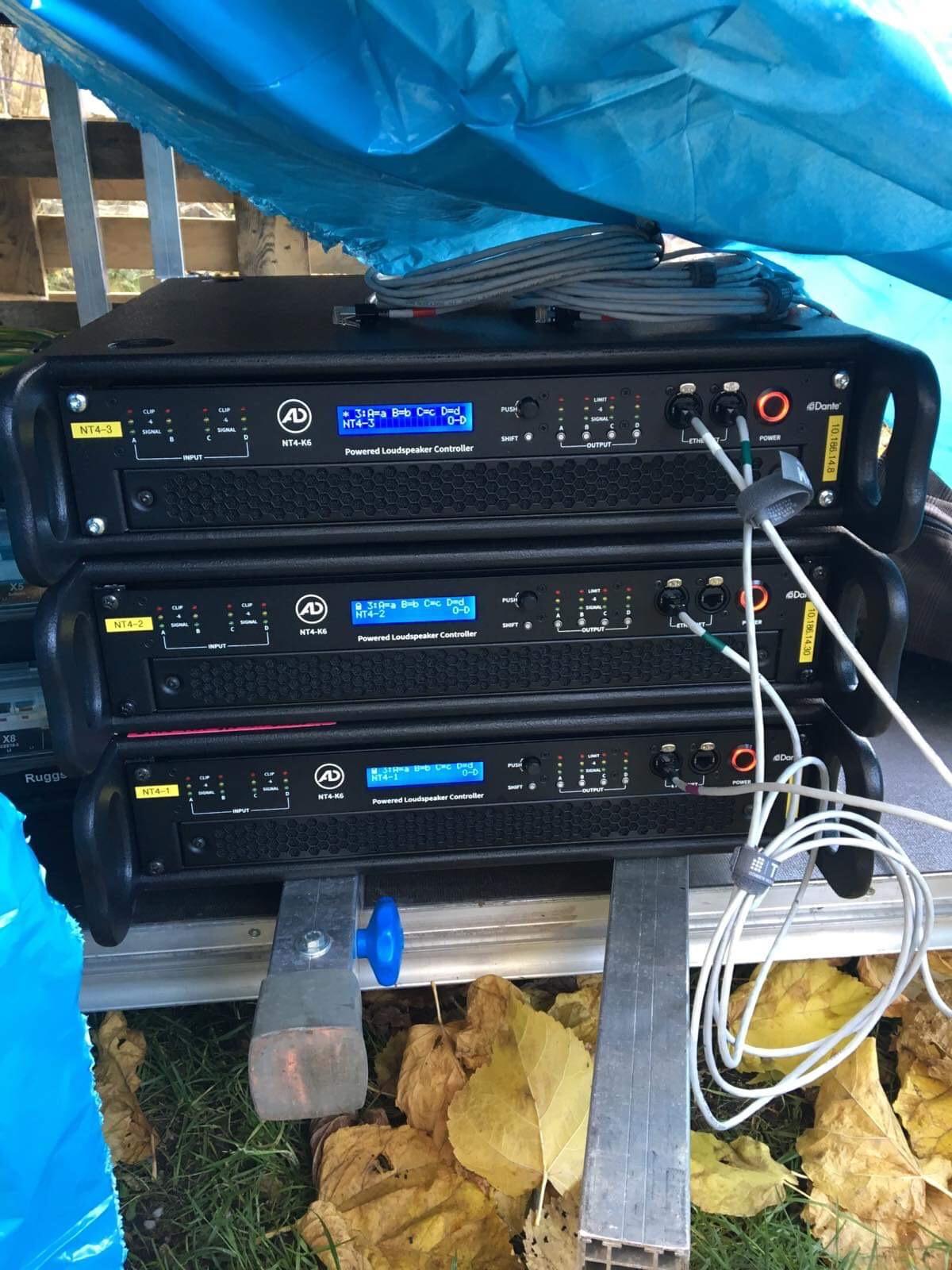

NT4-K6 Amplifier

The NT4-K6 four channel amplifier was developed for mobile and installed applications which require medium power. It has the same DSP Engine as the NT4-DSP and the NT3-K4. With setups for all AD-Systems products and even customized settings, this amplifier is a perfect choice.

The NT4-K6 has Delays in the input and output of 500 msec each, RMS and Peak limiters, FIR Filters, an open Edit Architecture for custom settings, and many more features.

The processing of each output is to be loaded independently.
The following processing blocks are in the outputs:

  • 12 bands fully parametric EQ
  • X-Over Section
  • Peak + RMS limiter
  • 1,000 taps FIR filter
  • level setting
  • delay 500 msec

The following processing blocks are in the inputs:

  • routingmatrix
  • level setting
  • delay 500 msec
  • 10 fully parametric bands

Specifications

  • 4 x 1,600 Watts @ 4 Ohms
  • Dante Audio on board
  • Active PFC for worldwide Operation
  • Open Edit Architecture for custom setups
  • Presets for all AD-Systems products on board
  • “embedded network switch” with 4 led out RJ45 / Neutrik EtherCon connectors

Of course, all setups for AD-Systems loudspeakers are available or can be supplemented comfortably by firmware update when new products are released. In addition, custom setups are possible, which the user can edit for his own applications.

Call us for more informations

See other electronics products

Get an overview of other electronic systems from AD-Systems. If you have any questions, please do not hesitate to contact us. Current prices for the NT4-K6 amplifier as well as the current product catalog are available on request.

Number of Channels
4in - 4 out, 4x Analog in, 4 x AES/EBUin, Dante™
Frequency Response
20Hz to 20kHz
Maximum Input Level
+20 dBu
Maximum Output Power
4 x 1600W @ 4 ohms, 4 x 1000W @ 8 ohms
Operating Voltage
90-240 VAC, 50-60Hz
Powerconsumption
2000W average, active Power Fator Corretion (PFC)
Dimensions (H x W x D)
2 RU x 483mm (19“) x 420mm
Weight
10.5 kg
