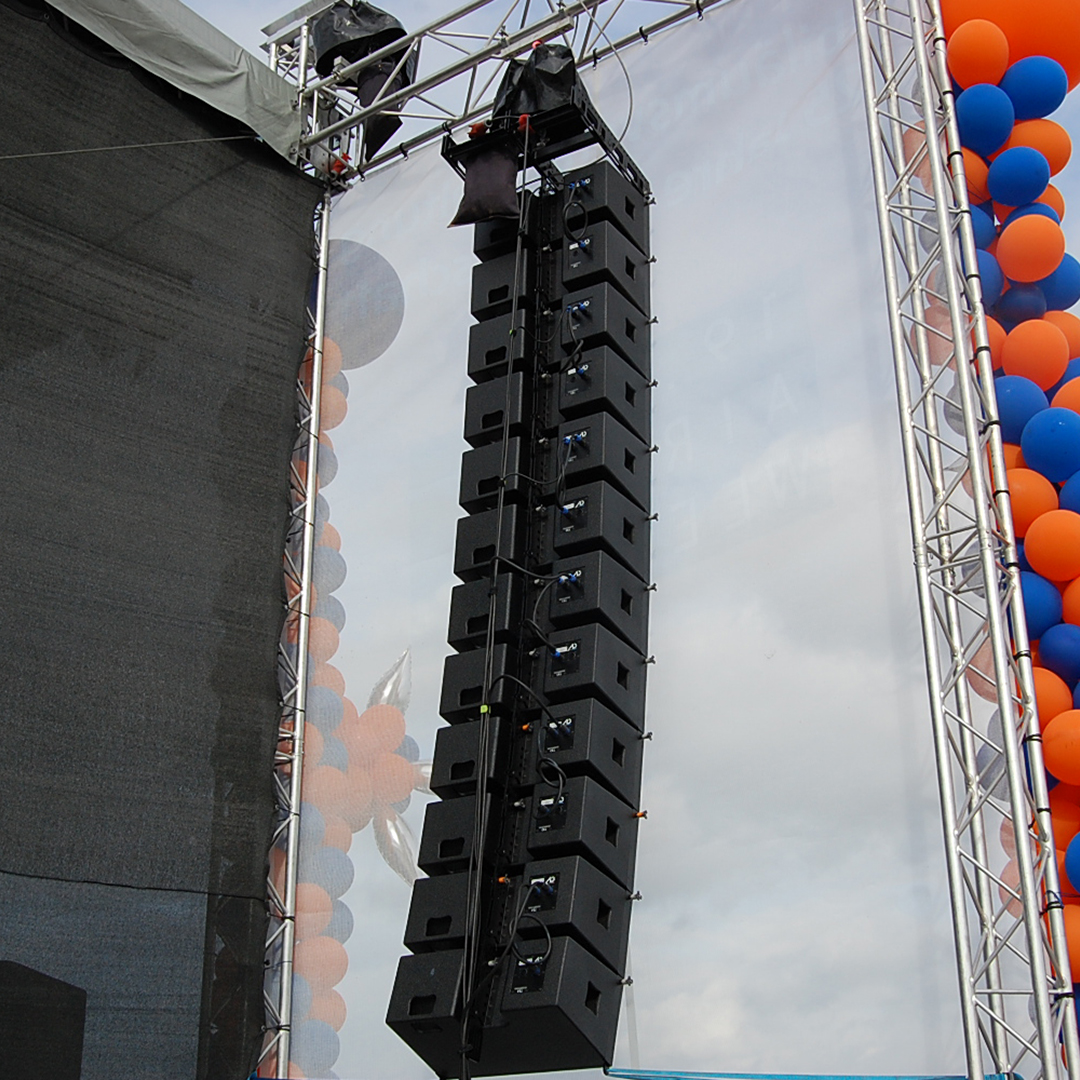

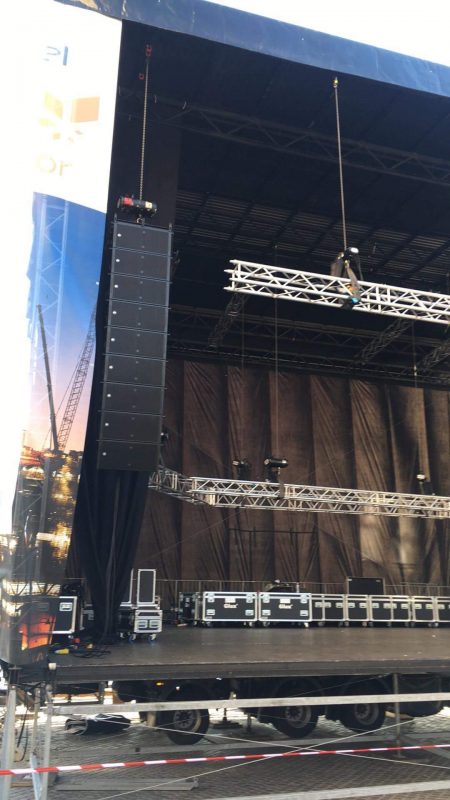

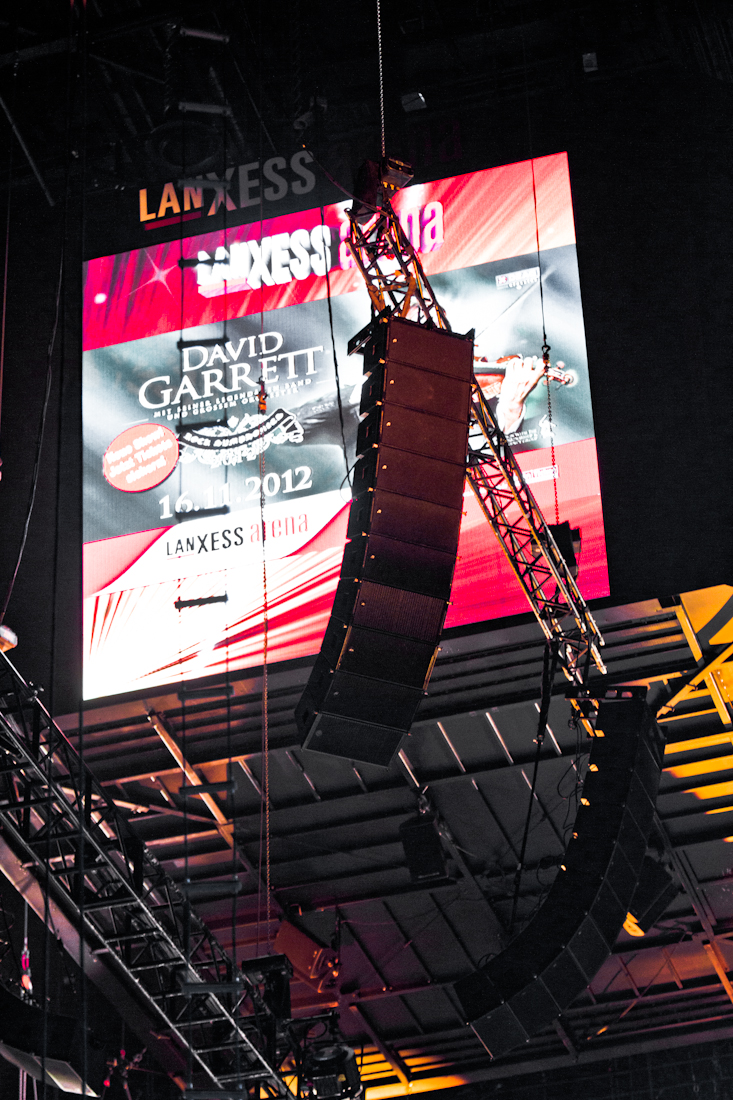

TouringLine

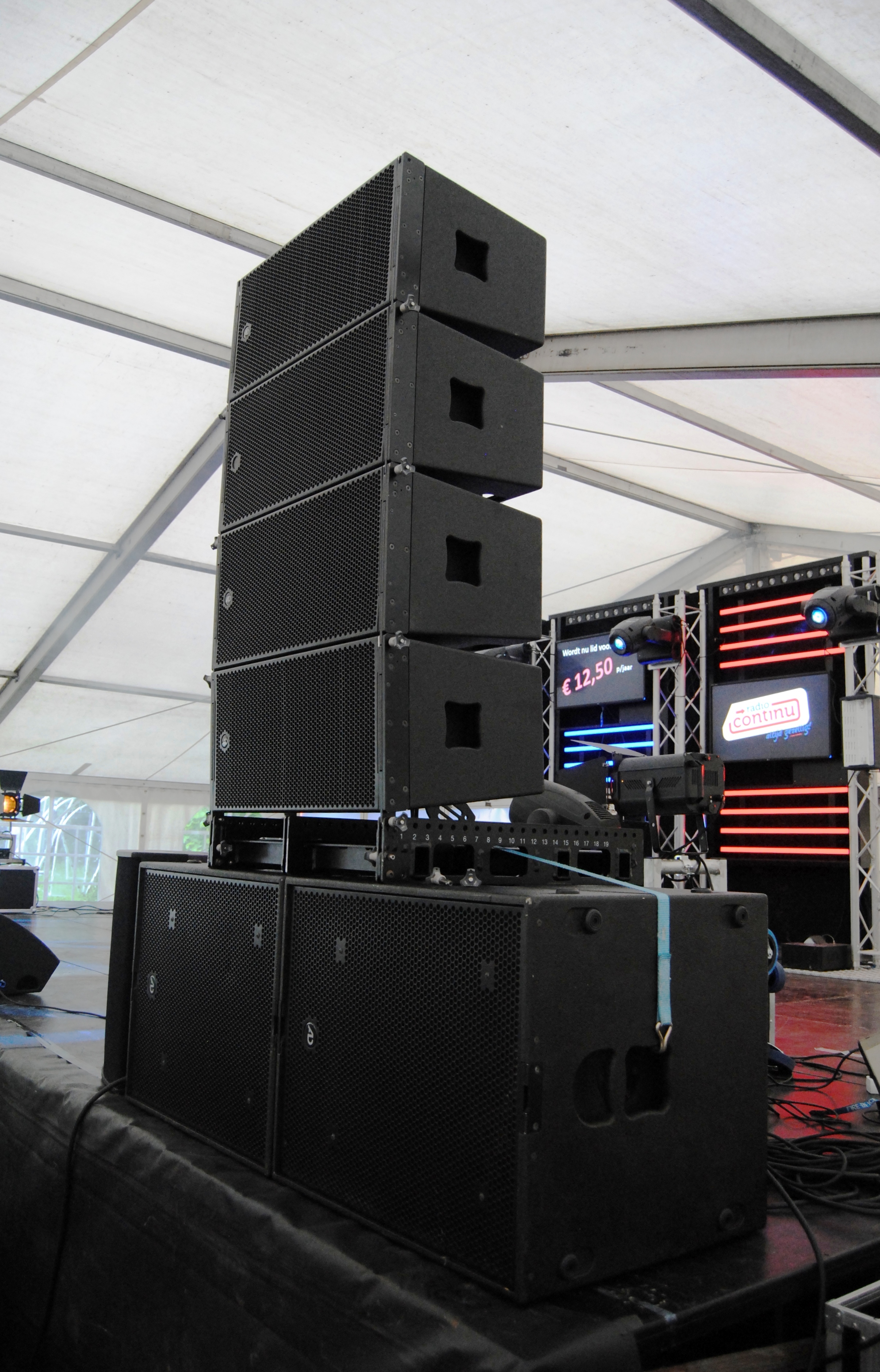

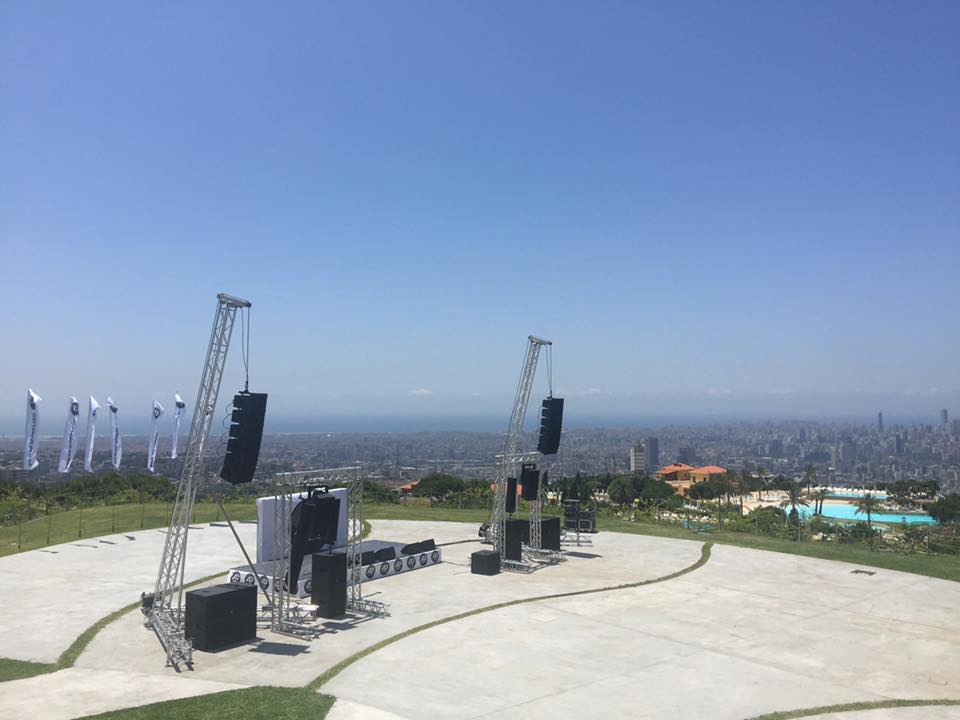

The TouringLine loudspeaker performs its scalable service in line array or groundstack and can be used for events of 1,000 - 15,000 people.

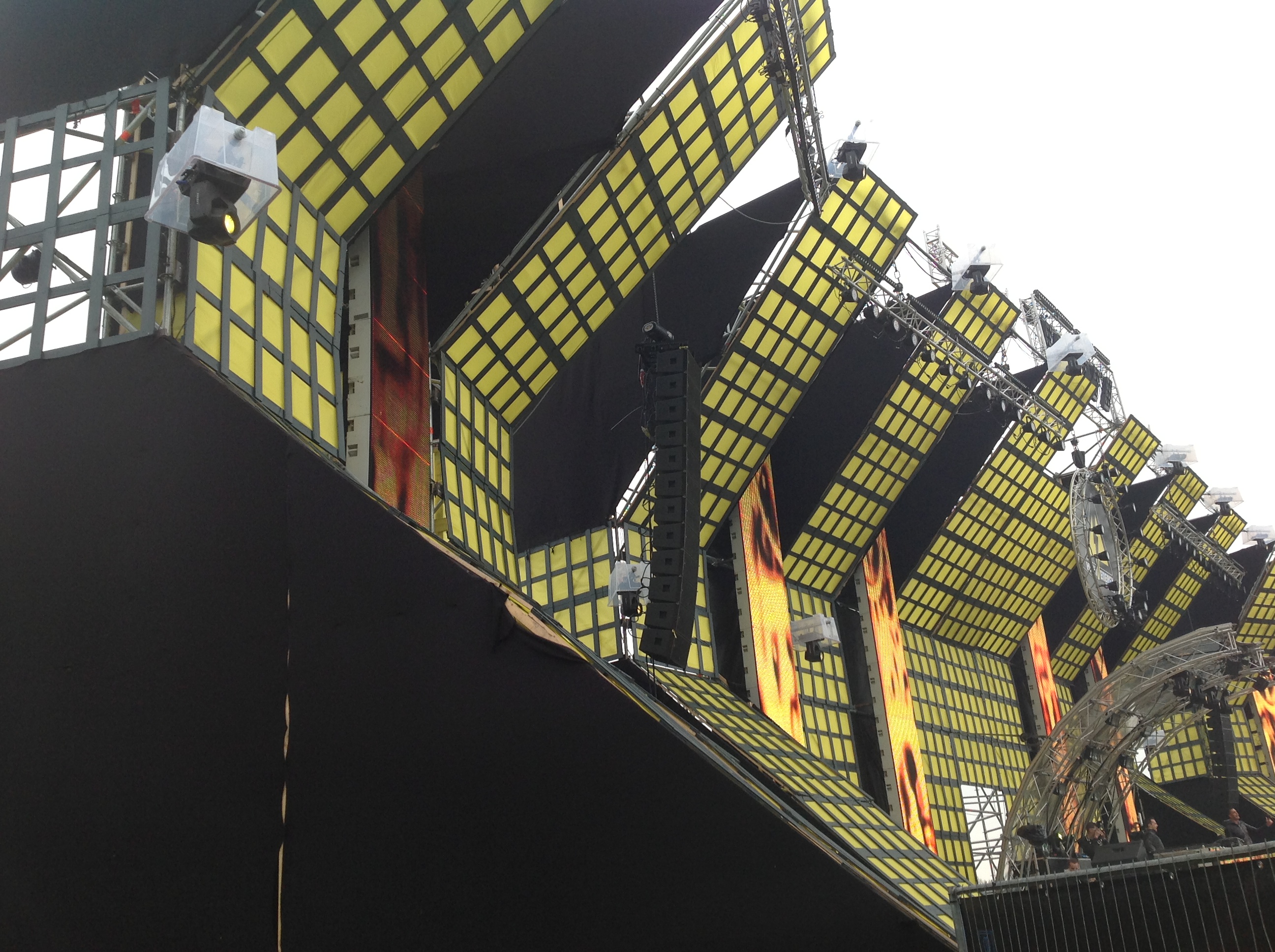

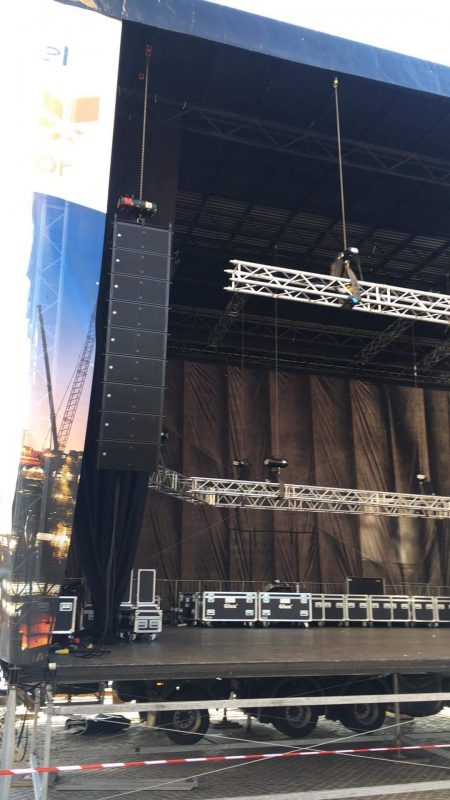

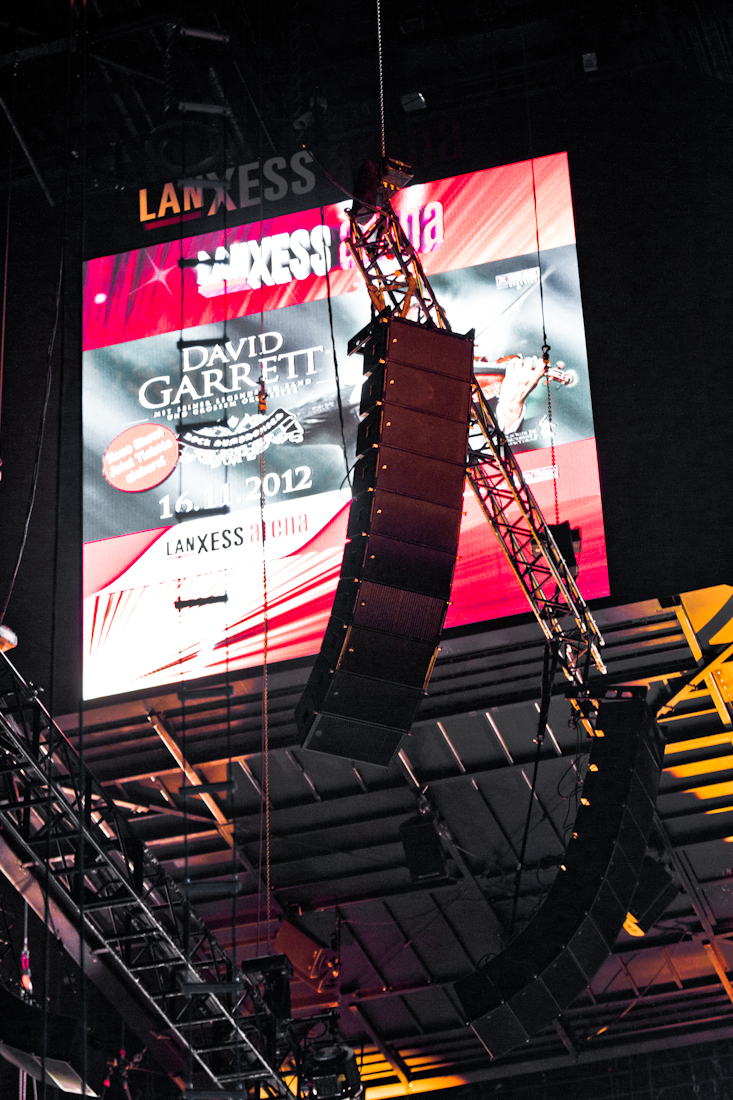

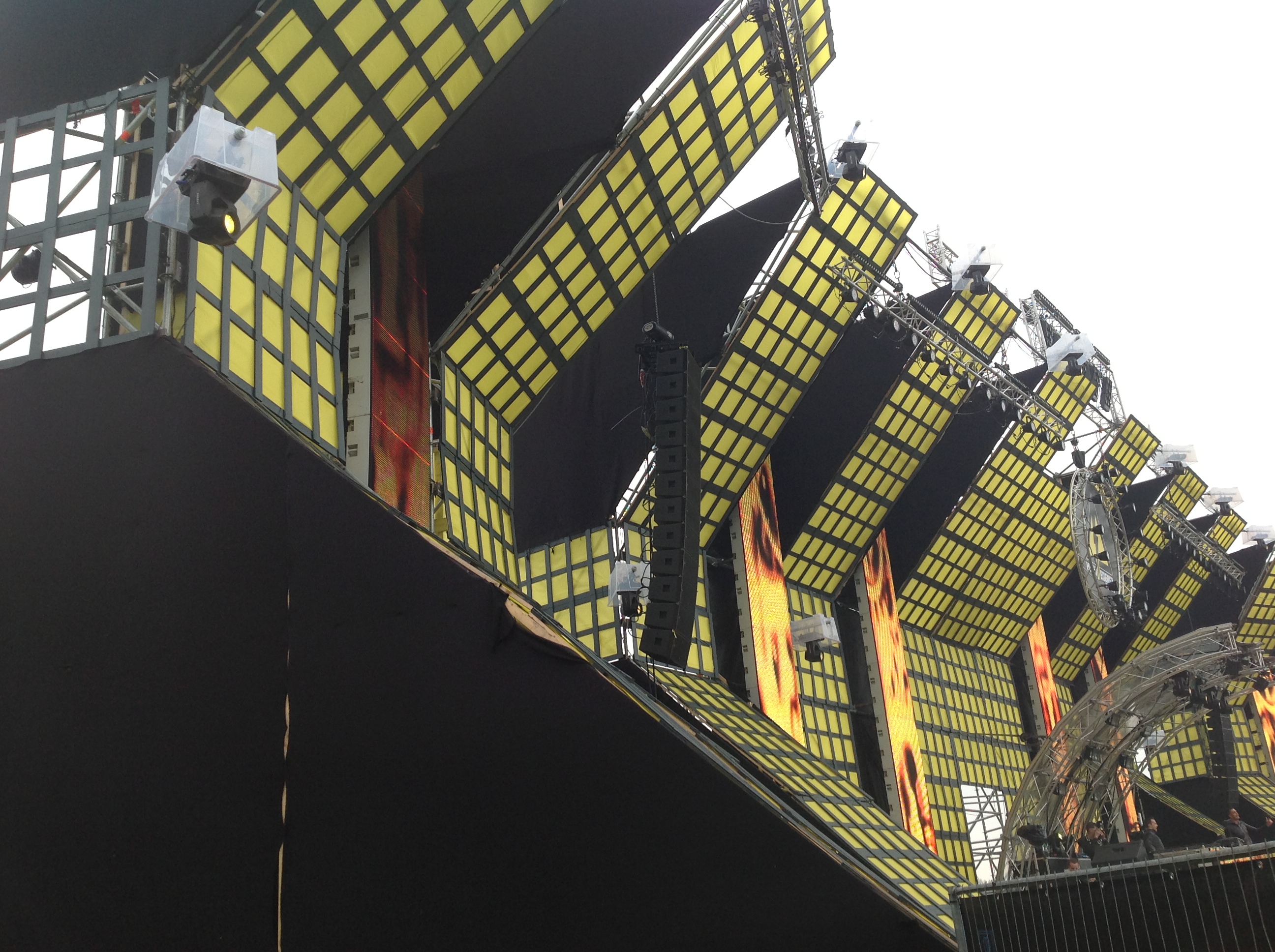

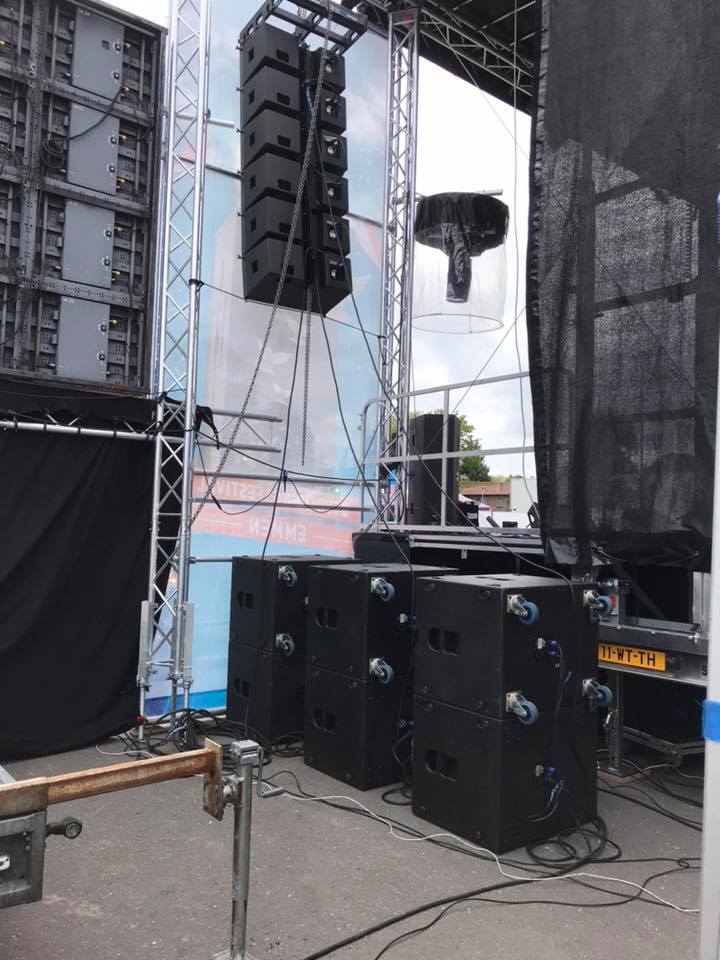

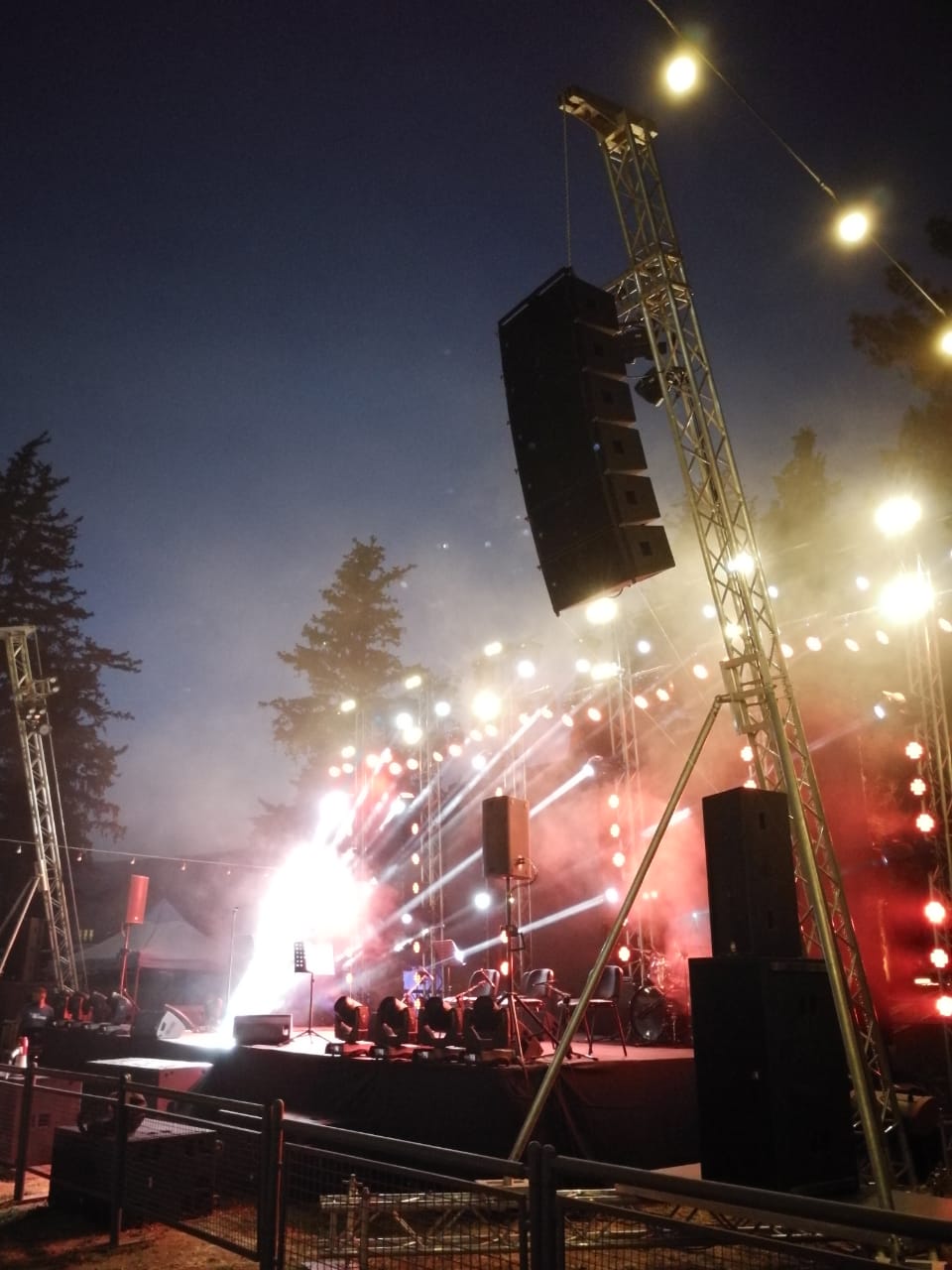

Application

  • • FOH system for audiences of 1,000-15,000 people
  • • Sidefill / outfill for large stages

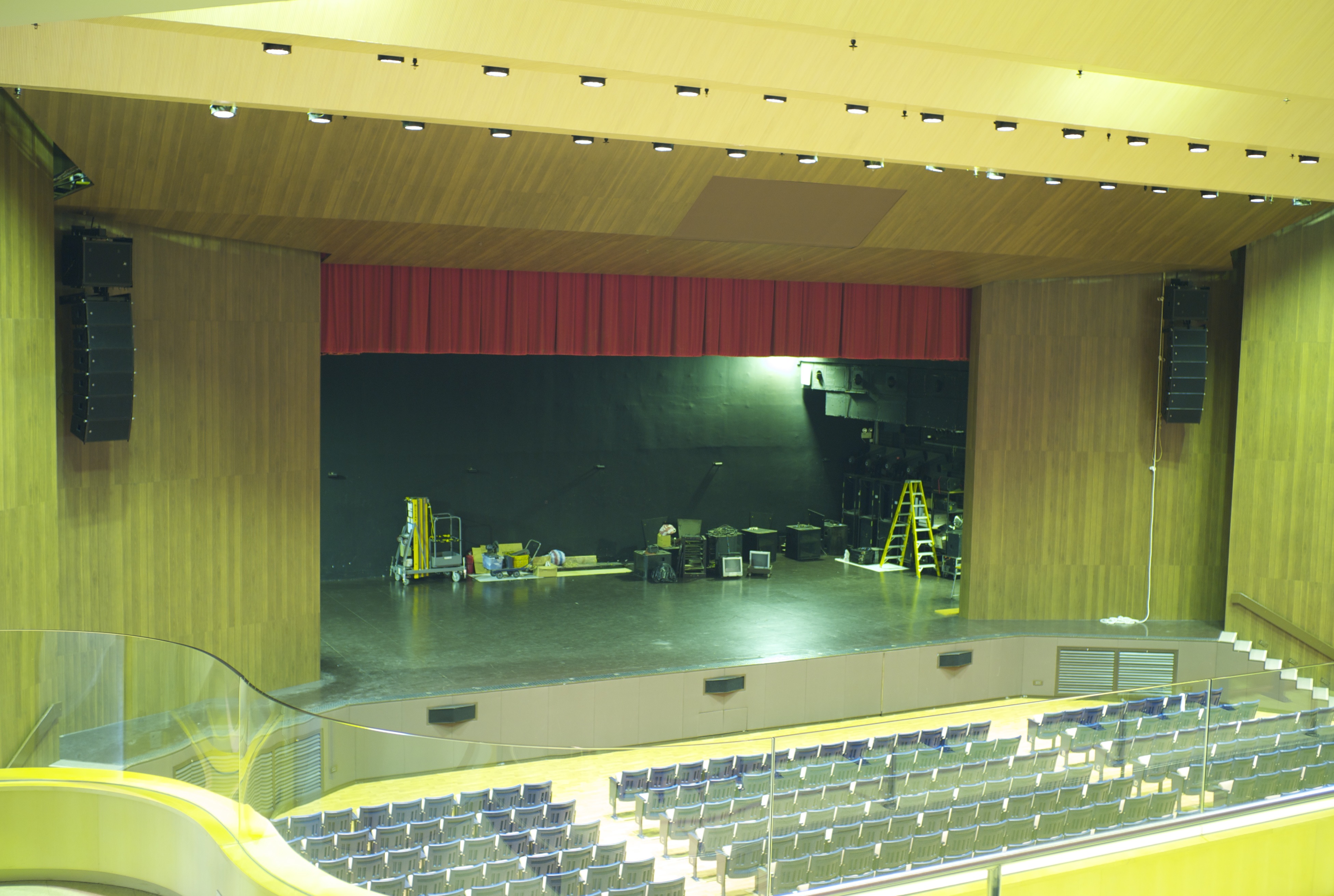

  • • Fixed installation
  • • Scalable up to 24 elements
  • • Compact, elegant, highly efficient design

12″ Line-Array Loudspeaker

Precise directivity, even coverage, extended range, compact transport volumes and  predictable acoustical results – a quantum leap in sound reinforcement technology. The touringline is our current flagship product and the result of extensive research, development and optimization of all components. No detail overlooked, no demand not incorporated. The TouringLine sets a new standard in line array technology applicability. No more, and definitely no less!

The TouringLine is a powerful 2-way line source loudspeaker containing an internal passive crossover for economic semi-active operation. It incorporates a direct radiating 12″ neodymium low-mid woofer and a neodymium high frequency driver / wave former combination. The line array wave former has a nominal coverage pattern of 90° x 10°. The unique 12“ low-mid woofer provides that which is often missing in so called Compact-Arrays: bottom end. The TouringLine has thick and warm low-mids and makes very low crossover frequencies possible. For many applications it is possible to use the TouringLine without additional subwoofers.

Easy handling – fast assembly

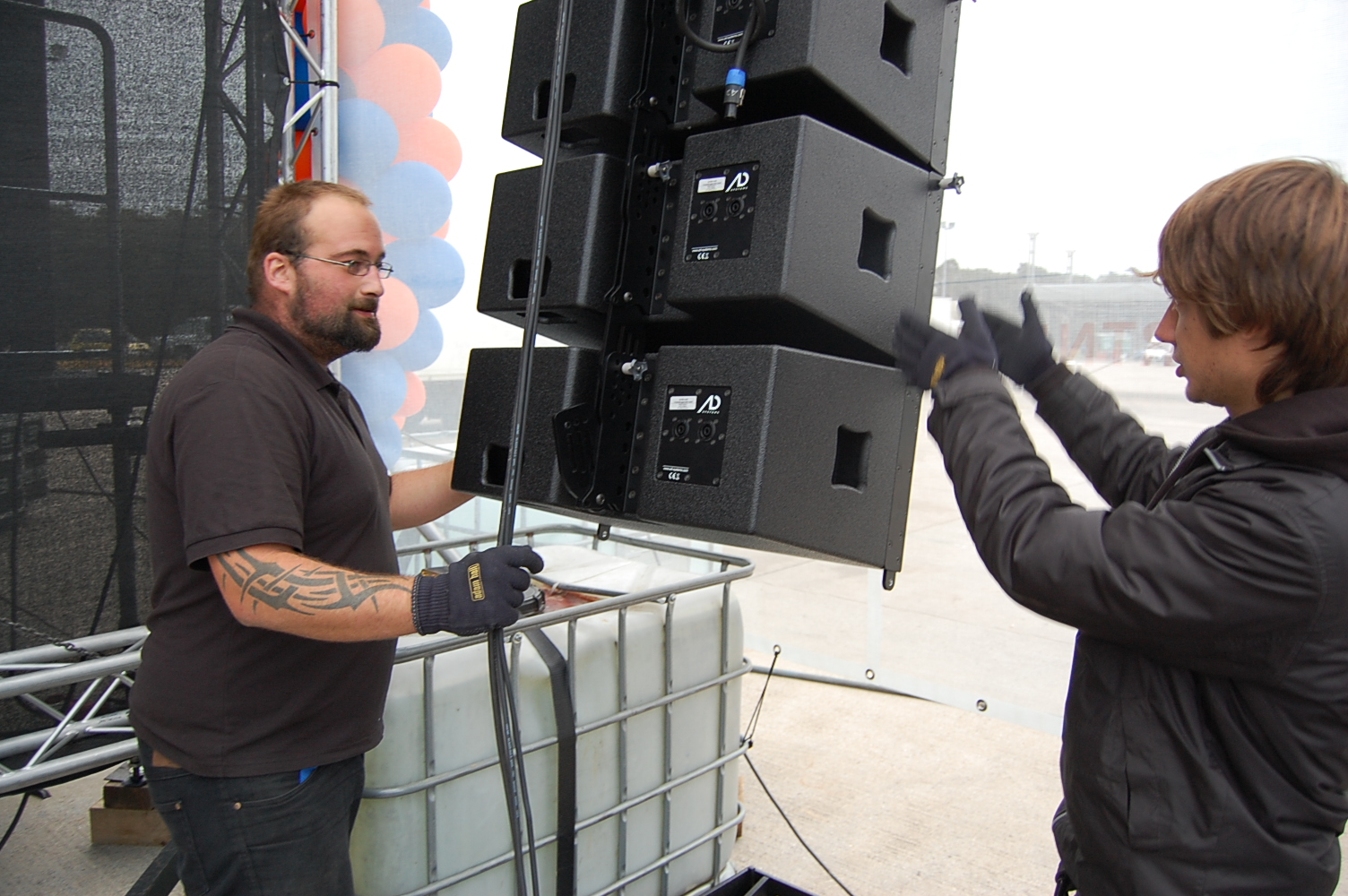

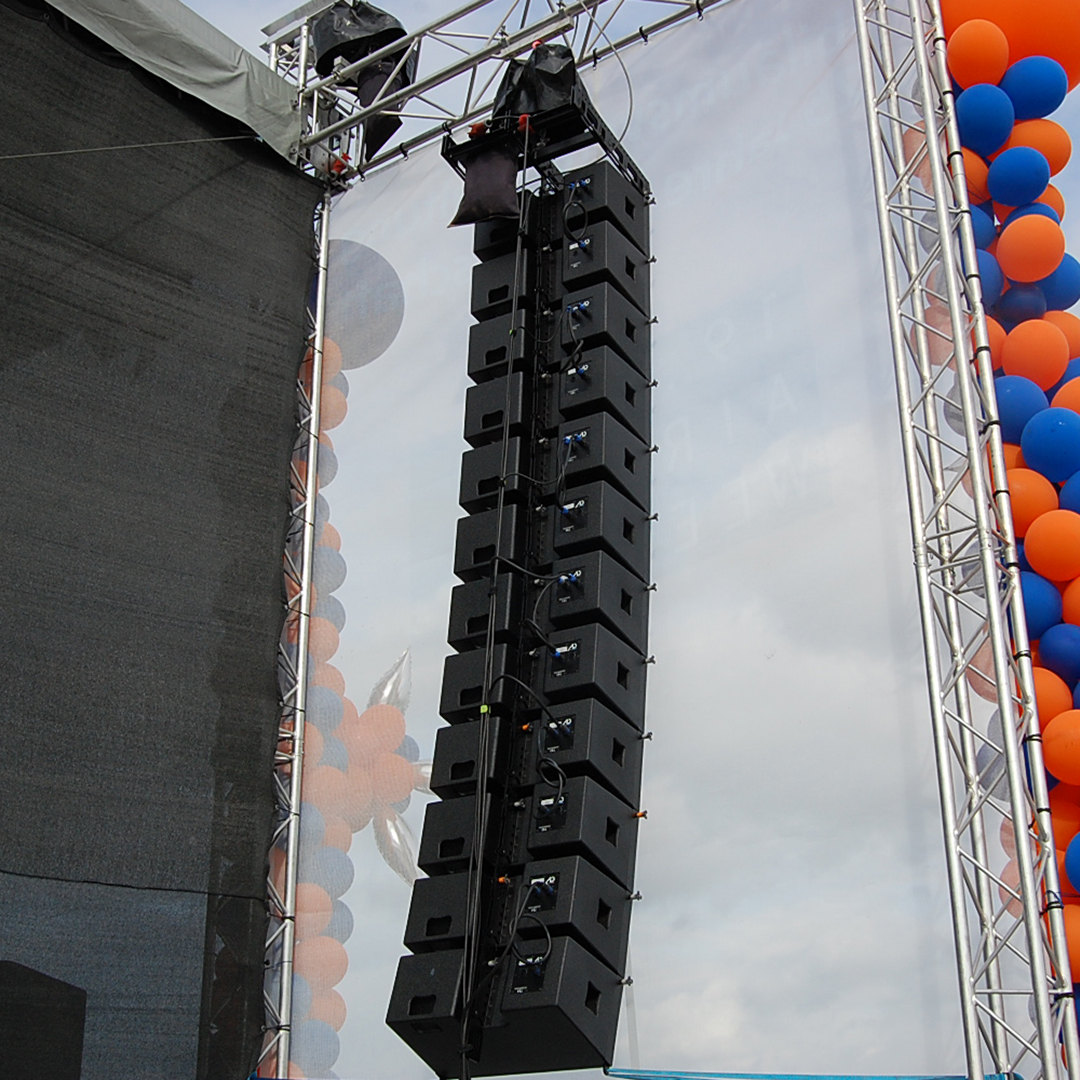

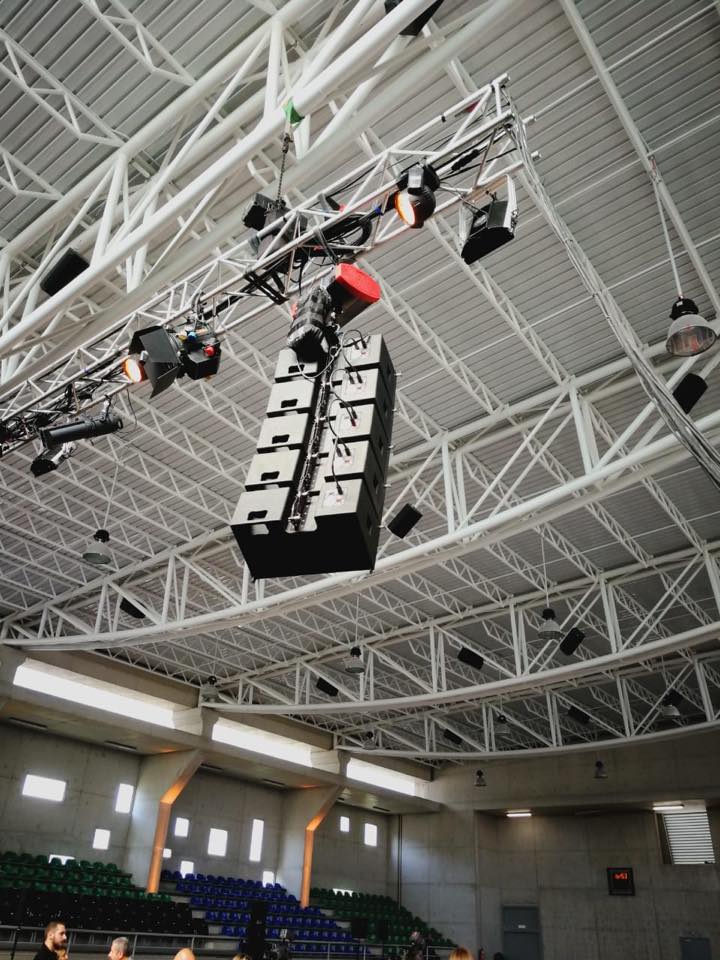

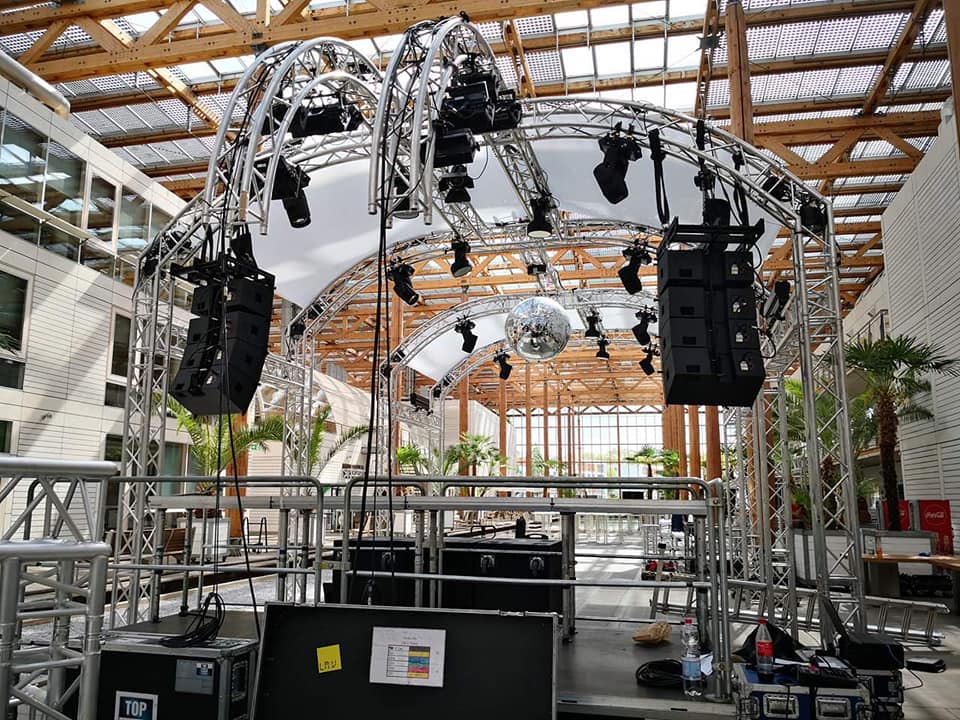

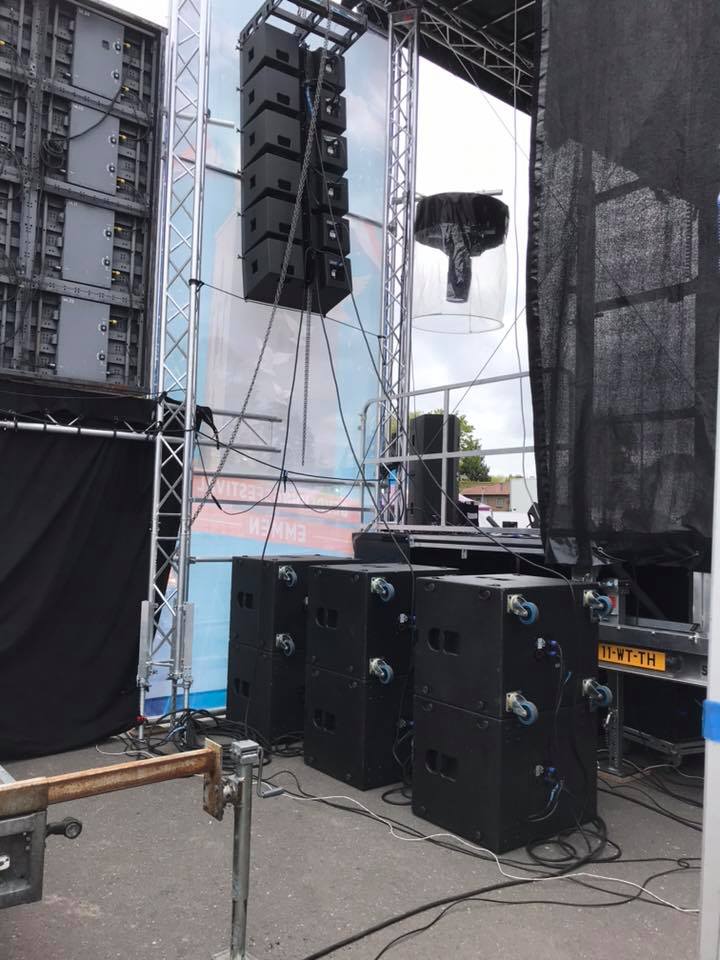

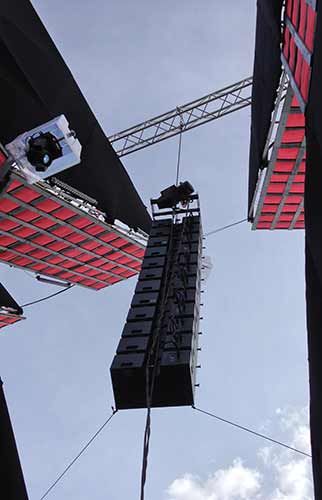

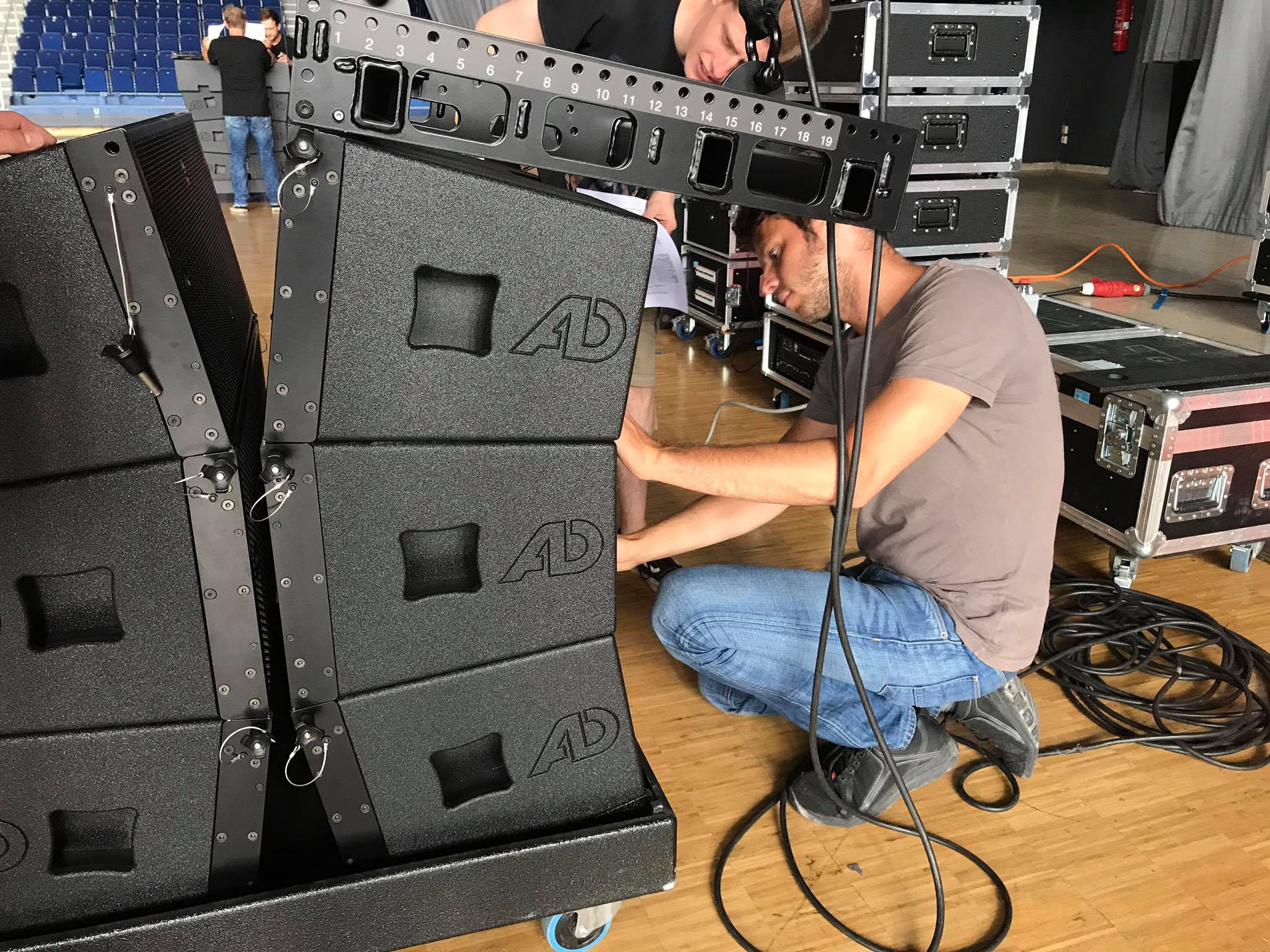

With the proprietary “Quick-Rig” system, putting the array into service is easy and efficient: A 12-element array flies within fifteen minutes – including chain hoist, bumper and splay angle setup! By using T6 aluminium in combination with high load steel, it was possible to minimize the weight to 29 kg per element. A 6-element array including rigging frame weighs less than 200 kilograms.

Fulfilled BGV C1 requirement

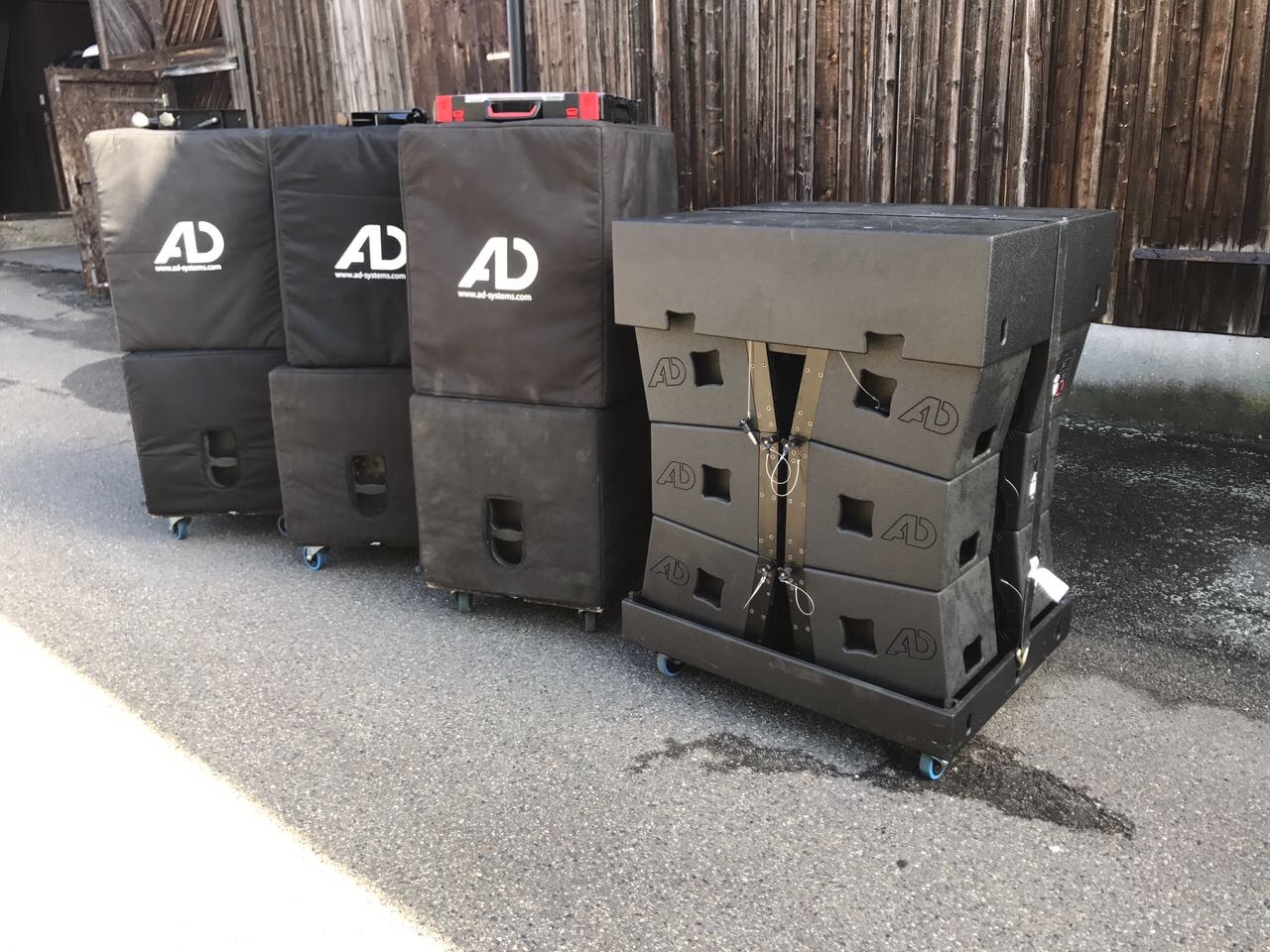

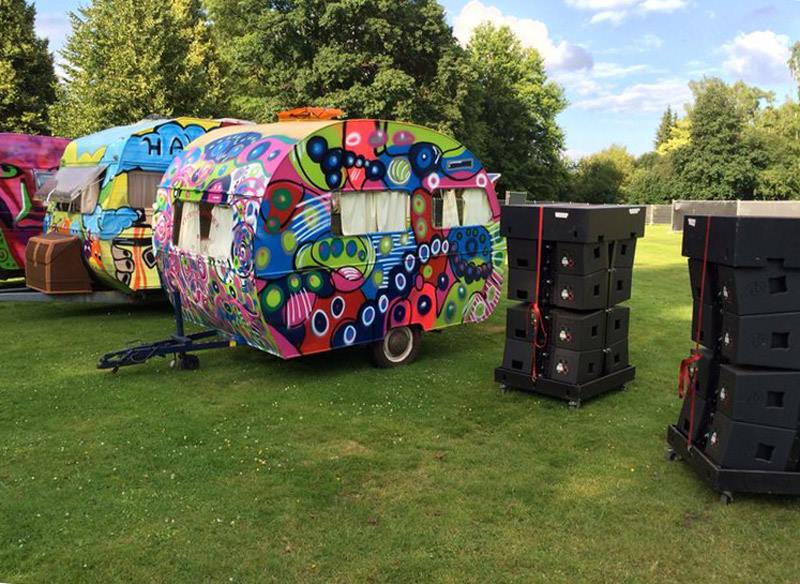

The available accessories  round off the touringline system perfectly: The TouringLine dolly takes up to 12 elements including rigging frame and small parts. Its dimensions fit into the footprint of the Euro-Pallet trucking grid. The rigging frame is made of high load steel and has got detailed labelling for easy usage. The complete rigging system of the TouringLine is certified for safe rigging of up to 24 modules on one frame according to the strict BGV C1 requirements.

Ease-Focus GLL. Daten download
With our loudspeaker data and Ease Focus 2 software, coverage of the TouringLine Modules as well as our other systems can be quickly simulated and rigging can be determined with great reliability.
GLL File available.

For optimal operation, the use of AD-Systems’ DSP and amplifiers are recommended. All necessary setups are on board, all relevant and appropriate parameters are set within seconds.



Application

• FOH system for audiences of 1,000-15,000 people
• Side fill / out fill for large stages
• Fixed installation
• Scalable up to 24 elements

Specifications

• 12″ Neodymium low mid woofer with 3.5″ voice coil
• 1.4″ Neodymium compression driver with 3″ voice coil on DoubleV waveformer
• 3 Neutrik Speakon NL4 ports
• Rated protection class IP-54
• Passive Crossover with PPCN technology
• Compact, elegant, highly efficient design

Measurement Data

Messdaten-Grafik Frequenzgang mit Processing und Impedanz
Messdaten-Grafik zum horizontalen und vertikalen Abstarhlverhalten des AD-Systems Linearray
Notes on performance data and graphs:

  1. Performance Specifications: All acoustic specifications rounded to nearest whole number.
    Either NT4 DSP Amplifiers or external DSP with provided settings are required to achieve the specified performance.
  2. Frequency response: Range of the processed response, where the level stays within 6dB from nominal sensitivity.
  3. Power Handling: Is based on the AES power handling of the transducers.
  4. Nominal Sensitivity: SPL produced by the unit at 1 Watt at nominal impedance, referenced to 1 Meter.
    Measurement condition: Full space in the far field of the speaker. Time-windowed to approximate an anechoic environment.
  5. Maximum SPL: Calculated from nominal sensitivity at stated peak input power.
  6. Resolution: For better readability a 1/6 octave smoothing is applied to all response graphs shown.
    All data provided are subject to change without prior notice.

Call us for more informations

See other speakers from the Touring-Series

Get an overview our other commercial loudspeakers. If you have any questions, please do not hesitate to contact us. Current prices for Line-Array loudspeaker as well as the product catalog are available on request.

• Product overview of our Touring product series

Enclosure
15 mm baltic birch plywood with Polyurea coating
AD-Systems loudspeakers are rated protection class IP-54
Basic layout
2-Way passive, bass reflex tuning
Protective Grille
2.0 mm sheet steel, hex-stamped, black acoustic foam on inside
Components
12″ Neodymium low mid woofer with 3.5″ voice coil
1.4″ Neodymium compression driver with
3″ voice coil on DoubleV Waveformer
Passive Crossover with PPCN technology
Frequency Response
60 Hz–18 kHz +/-3 dB
Power handling RMS | peak
700 W RMS | 2,500 Watt Peak
Nominal Impedance
8 Ω
Dispersion pattern
90° x 10°
Sensitivity
99 dB Lo-Mids, 110 dB High
SPLmax
133 dB | peak | 1 m, 1 Element
Connectors
3x Neutrik Speakon NL4: 2x (1+/1-) and 1x (Cross 1/2)
Dimensions (w x h x d)
70 x 33 x 40 cm
net weight
29 kg
TL – Rigging Frame

TL – Rigging Frame

The rigging frame bumper allows the handle up to 20 TL-modules and was BGV C1 certified. This frame can be used in flight- and stacking-mode. 8 Ball Lock Pins required. Order number: 7011000117

TL – Rigging Frame compact

TL – Rigging Frame compact

The compact rigging frame (Flying bar) is designed for applications with up to 6 TL-moduls. BGV-C1 certified. Dimensions: 69 x 53 x 10,5 cm (LxWxH) - Weight: 12 kg. Order number: 7011000116

TL(C) – Riglink M12

TL(C) – Riglink M12

This Riglink with M12 thread allows you to fly 4x TL-modules or 6x TLC-modules. Order number: 7010000919

TL(C) – Bumper Riglink

TL(C) – Bumper Riglink

The Bumper Riglink makes it possible to fly 20 TL-modules as well as TLC-modules and is certified to BGV C1. Order number: 7100000413

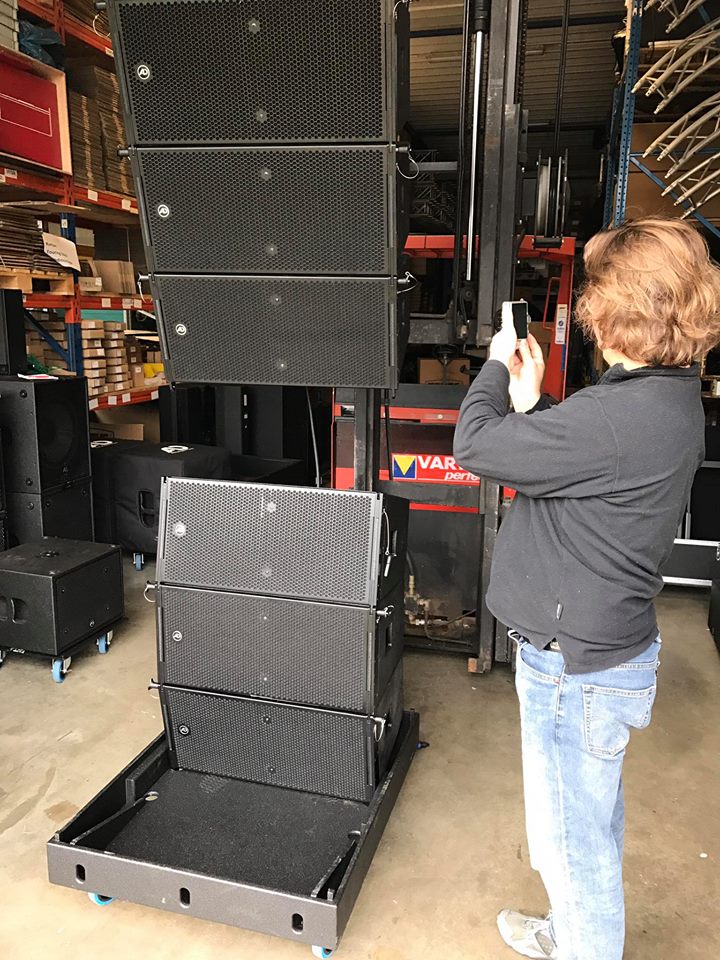

TL – Touringline Dolly

TL – Touringline Dolly

Our Touringline Dolly allows simple and safe transport of up to 6 TL modules. Stowed in the lid also the "Rigging Frame" and has an additional compartment for audio accessories. The dolly was equipped with four Blue-Wheels and has truck-compatible dimensions of 80 x 120 cm. Order number: 7011000134

TL – Ball Lock Pin 25/10mm

Ball Lock Pin for connecting the line array modules. Three pieces are required per loudspeaker. Order number: 7011000132

LAP-TEQ Inclinometer

LAP-TEQ Inclinometer

Use the LAP-TEQ Inclinometer to measure the inclination of a Line-Array. It consists of the LAP-TEQ sensor module and the LAP-TEQ display module. The sensor module containst a laser to show the endpostion of the array. Display Unit - Order number: 7011000162 Sensor Unit - Order number: 7011000163
