i.Flex 10

10 inch midrange loudspeaker i.flex10 with 1" compression driver and 1.4" voice coil

Application

  • • Conference-, trainingsrooms
  • • Sport- and multipurpose hall
  • • Theatre
  • • Musicals
  • • Adventure parks
  • • Clubs
  • 10 inch midrange loudspeaker i.flex10 with 1
  • iFlex 10 Installation speaker with black housing RAL 9005

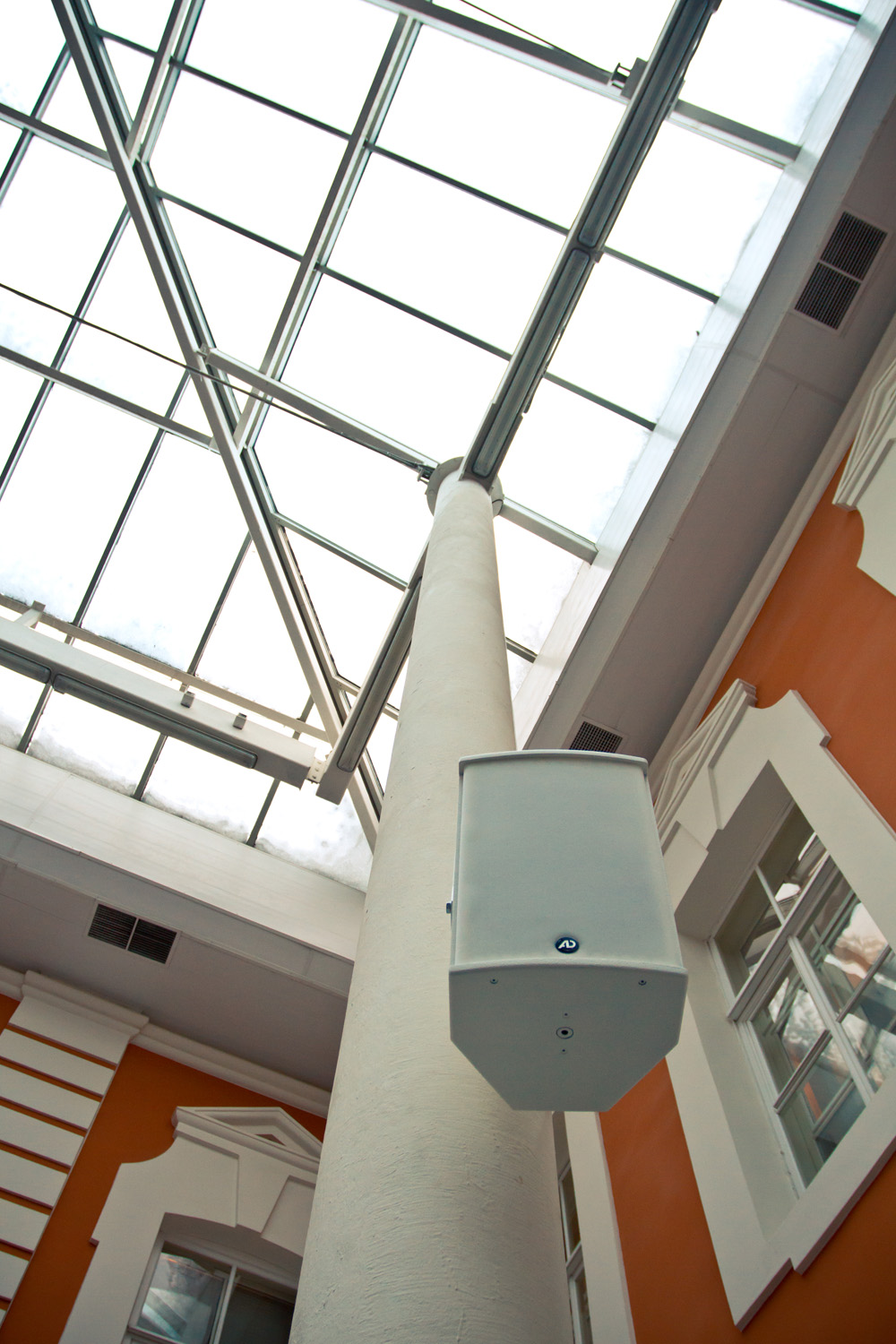

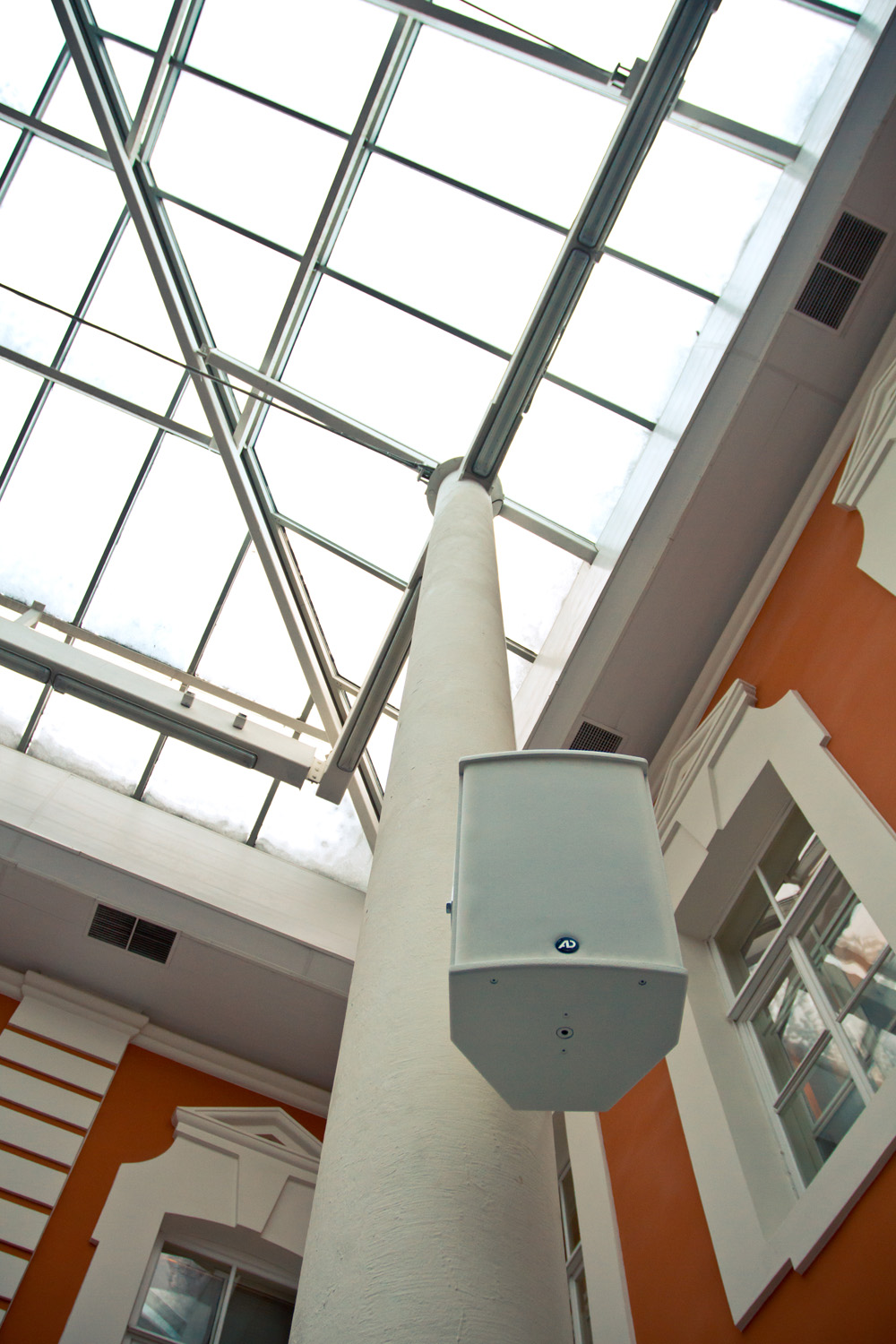

  • iFlex 10 loudspeaker with white housing color

10″ Fullrange Loudspeaker

The i.Flex 10 is a 2-way fullrange loudspeaker with an integrated passive crossover. It is equipped with a direct radiating 10″ low-mid speaker and a 1″ compression driver on a rotatable CD horn.

The horn, with a directivity of 90° x 60°, can be rotated to 60° x 90°. An elaborate passive crossover provides phase-corrected alignment. The i.flex 10 enclosure is fitted with many flying and mounting points to enable easy installation with the available accessories

The i.flex 10 is suitable for public address applications up to a distance of 15 meters. Due to its linear tuning, no system controller is required.

Application

• For fixed installation
• Theatres, Musicals, Clubs
• Sport and multipurpose halls
• Conference and trainingsrooms

Specifications

• 10″ low-mid speaker with 3.5″ voice coil
• 1″ compression driver with 1.4″ voice coil
• Passive Crossover with PPCN technology
• Rated protection class IP-54
• 2 Neutrik Speakon NL4: 1+/1-
• Colour: Black, similar RAL 9005
• Colour: White, similar RAL 9010
• Optional colours: RAL or NCS

Call us for more informations

See other speakers from the i.Flex-Series

Get an overview of other commercial loudspeakers from AD-Systems. If you have any questions, please do not hesitate to contact us. Current prices for the i.Flex10 speaker as well as the current product catalog are available on request.

10 inch midrange loudspeaker i.flex10 with 1" compression driver and 1.4" voice coil
i.Flex 10
The 12 "low-range loudspeaker i.Flex12.1 was specially designed for fixed installations
i.Flex 12.1
The 12 "low-range loudspeaker i.Flex12.1 was specially designed for fixed installations
i.Flex 12.2
The i.Flex15.1 is a 15 "midrange loudspeaker with 1" compression driver for fixed installations
i.Flex 15.1
The i.Flex15.1 is a 15 "midrange loudspeaker with 1" compression driver for fixed installations
i.Flex 15.2
The i.Flex15B bass reflex system with its 15-inch long-stroke loudspeaker serves as a bass support for PA systems of all kinds
i.Flex 15B
The bass reflex loudspeaker i.Flex18B has an 18 inch long stroke loudspeaker
i.Flex 18B
The i.Flex6 loudspeaker has a 6.5" low-frequency loudspeaker and 1" compression driver
i.Flex 6
The i.Flex8 is a 2 way full-range loudspeaker for fixed installations
i.Flex 8
2fach 12"
i.Stium
isotto mounting bracket for wall and ceiling mounting
i.Sotto 1

Enclosure
15 mm birch plywood with structure paint
AD-Systems loudspeakers are rated protection class IP-54
Basic layout
2-way passive system, bass-reflex tuning
Protective Grille
1.5 mm grille, covered with acoustic foam
Components
10″ low-mid speaker
1.0″ compression driver with 1.4″ voice coil
on rotatable 90° x 60° CD-Horn
Passive Crossover with PPCN technology
Frequency Response
85 Hz–20 kHz
Power handling RMS | peak
250 Watt RMS | 1,000 Watt Peak
Nominal Impedance
8 Ω
Dispersion pattern
90° x 60°
Sensitivity
96 dB
SPLmax
126 dB | peak | 1 m
Connectors
2 Neutrik Speakon NL4: 1+/1-
Dimensions (w x h x d)
31 x 48 x 30 cm
net weight
12 kg
Accessories
100 Volt transformer (ELA)
iFlex10 – V-Bracket

iFlex10 – V-Bracket

Loudspeaker V-Bracket for verticale use.
Colour: black, similar RAL 9005. Order number: 7011000179
Colour: white, similar RAL 9010. Order number: 7011000180

iFlex10 – H-Bracket

iFlex10 – H-Bracket

Loudspeaker H-Bracket for horizontal use.
Colour: black, similar RAL 9005. Order number: 7011000043
Colour: white, similar RAL 9010. Order number: 7011000178

2-Axis Wall Mount up to 15 kg

2-Axis Wall Mount up to 15 kg

2-Axis Wall Mount for i.Flex 6, 8, 10.
Fully adjustable up to 30° tilt and 90° swivel.
Distance to wall: 110 mm - Wallplate: 90 x 160 mm - Load capacity: max. 15kg.
Color: Black, similar to RAL 9005. Order number: 7011000195
Color: White, similar to RAL 9010. Order number: 7011000196

3-Axle Wall-Mountingbracket

3-Axle Wall-Mountingbracket

3-Axle Wall-Mountingbracket for all iFlex loudspeaker.
Consisting of three separable parts. Wallplate good for "light" walls.
Wallplate Black, similar to RAL 9005. Order number: 7011000203
Radial carrier Black, similar to RAL 9005. Order number: 7011000204
Angle adjuster Black, similar to RAL 9005. Order number: 7011000205

Wallplate White, similar to RAL 9010. Order number: 7011000924
Radial carrier White, similar to RAL 9010. Order number: 7011000925
Angle adjuster White, similar to RAL 9010. Order number: 7011000926
